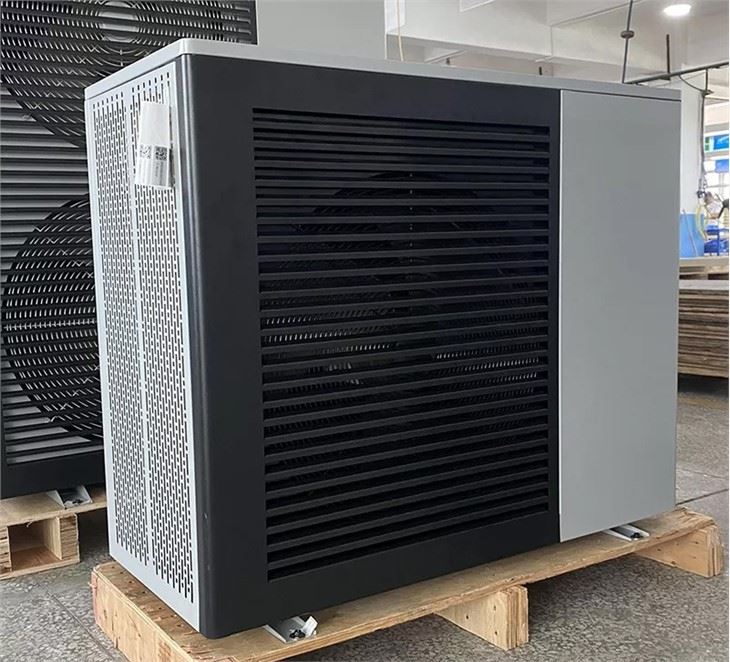

R32 inverterli isitish issiqlik pompasi havodan suvga issiqlik nasosidir. Kompressor ishini haydash uchun faqat elektr energiyasining 1 qismi kerak bo'ladi, keyin esa atrofdagi havodan 3 qismli erkin issiqlik energiyasini o'zlashtira oladi va nihoyat uylarni isitish, sovutish va maishiy issiq suv funktsiyalari bilan ta'minlash uchun issiqlikning 4 qismini chiqarishi mumkin. An'anaviy isitish yoki sovutish uskunalari bilan solishtirganda, u energiyani 50 ~ 80% ga tejash imkonini beradi.
Xususiyat:
Isitish quvvati 8.4KW ~ 35KW
Ishlayotgan muhit harorati diapazoni -30 daraja ~43 daraja
Yil davomida isitish sovutish va maishiy issiq suv bilan ta'minlash
Energiya darajasi A+++ TUV tomonidan sinovdan o'tgan
4,92 COP va 60 daraja chiqish suvi
Ko'p tilli LCD sensorli kontroller va bepul WIFI va IoT nazorati
Spetsifikatsiya:
| Mahsulot modeli | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | PD% 7b{0}}CRL-DC | |
| Isitish | Isitish quvvati diapazoni (kVt) | 1.57~8.40 | 4.40~13.00 | 4.40~13.00 | 5.9~18.2 | 5.9~18.2 | 7.5~23.0 | 10.2~28.0 | 12.8~35.0 |
| Isitish kirish diapazoni (kVt) | 0.32~1.87 | 0.90~3.02 | 0.90~3.02 | 1.20~4.11 | 1.20~4.11 | 1.53~5.23 | 2.07~6.36 | 2.61~7.99 | |
| joriy diapazon (A) | 1.42~8.30 | 1.39~4.68 | 4.12~13.8 | 1.86~6.37 | 5.49~18.8 | 2.37~8.11 | 3.70~11.4 | 4.67~14.3 | |
| COP diapazoni | 4.49~4.91 | 4.30~4.90 | 4.30~4.90 | 4.43~4.92 | 4.43~4.92 | 4.40~4.90 | 4.40~4.92 | 4.38~4.90 | |
| Sovutish | Sovutish quvvati diapazoni (kVt) | 0.99~6.22 | 2.80~8.20 | 2.80~8.20 | 3.81~11.53 | 3.81~11.53 | 4.73~14.6 | 6.54~19.8 | 8.13~24.6 |
| Sovutishning kirish quvvati (kVt) | 0.29~2.18 | 0.85~3.31 | 0.85~3.31 | 1.11~4.05 | 1.11~4.05 | 1.39~5.14 | 1.92~6.97 | 2.42~8.75 | |
| joriy diapazon (A) | 1.28~9.67 | 1.32~5.13 | 3.89~15.1 | 1.72~6.28 | 5.08~18.5 | 2.16~7.97 | 3.43~12.5 | 4.33~15.6 | |
| EER diapazoni | 2.85~3.41 | 2.48~3.29 | 2.48~3.29 | 2.85~3.43 | 2.85~3.43 | 2.84~3.40 | 2.84~3.40 | 2.81~3.36 | |
| DHW | Isitish quvvati diapazoni (kVt) | 1.28~6.81 | 3.52~10.50 | 3.52~10.50 | 4.80~14.72 | 4.80~14.72 | 6.1~18.5 | 12.3~20.4 | 13.6~22.6 |
| Isitish kirish diapazoni (kVt) | 0.31~2.13 | 0.88~3.39 | 0.88~3.39 | 1.17~4.60 | 1.17~4.60 | 1.53~5.97 | 2.8~5.37 | 3.09~5.95 | |
| joriy diapazon (A) | 1.38~9.45 | 1.36~5.26 | 4.03~15.5 | 1.82~7.15 | 5.35~21.1 | 2.37~9.26 | 5.0~9.6 | 5.52~10.6 | |
| COP diapazoni | 3.2~4.1 | 3.1~4.0 | 3.1~4.0 | 3.2~4.1 | 3.2~4.1 | 3.1~4.0 | 3.8~4.4 | 3.8~4.4 | |
| Sovutgich | R32 | ||||||||
| Quvvatlantirish manbai | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | 230V/1Ph/50-60Hz | 380V/3Ph/50-60Hz | |||
| Maksimal kirish quvvati (kVt) | 3.6 | 4.5 | 4.5 | 6.5 | 6.5 | 7.35 | 10.1 | 12.0 | |
| Maksimal oqim (A) | 16.5 | 8.5 | 19.6 | 12.3 | 28.8 | 14 | 18 | 21.4 | |
| Sug'urta yoki o'chirgich (A) | 25 | 16 | 32 | 20 | 40 | 25 | 32 | 32 | |
| Tel diametri mm² | 4 mm² | 2,5 mm² | 6 mm² | 4 mm² | 6 mm² | 4 mm² | 6 mm² | 6 mm² | |
| Ish maydoni | -30~43 daraja | ||||||||
| Suv aylanishi (m³/H) | 1.4 | 2.2 | 2.2 | 3.1 | 3.1 | 4.0 | 4.8 | 6.0 | |
| Suv bosimining pasayishi (kPa) | 31 | 25 | 25 | 35 | 35 | 45 | 40 | 50 | |
| IP darajasi (himoya darajasi) | IPX4 | ||||||||
| Elektr toki urishiga qarshi tezlik | I | ||||||||
| Shovqin (dB(A)) | 53 dan kichik yoki teng | 55 dan kam yoki teng | 55 dan kam yoki teng | 57 dan kichik yoki teng | 57 dan kichik yoki teng | 58 dan kichik yoki teng | 62 dan kichik yoki teng | 66 dan kichik yoki teng | |
| Sof vazn/Brüt vazn (kg) | 95 | 105 | 105 | 150 | 150 | 155 | 210/220 | 230/240 | |
| Quvur diametri (mm) | DN25 | DN25 | DN25 | DN25 | DN25 | DN25 | DN32 | DN32 | |
| Tana hajmi (G*D*Y) (mm) | 970×475×820 | 1100×475×985 | 1100×475×985 | 1050×480×1330 | 1050×480×1330 | 1050×480×1330 | 1160×500×1580 | 1160×500×1580 | |
| Qadoqlash hajmi (W * D * H) (karton) | 1028×520×974 | 1120×515×1108 | 1120×515×1108 | 1100×530×1470 | 1100×520×1470 | 1100×520×1470 | 1200×540×1720 | 1200×540×1720 | |
| Qadoqlash hajmi (W * D * H) (Polywood) | 1048×520×974 | 1140×515×1110 | 1140×515×1110 | 1120×530×1470 | 1120×520×1470 | 1120×520×1470 | 1230×540×1720 | 1230×540×1720 | |
| Yuklash miqdori (20GP/40GP/40HQ) | 44/88/88 | 44/88/88 | 44/88/88 | 22/46/46 | 22/46/46 | 22/46/46 | 18/40/40 | 18/40/40 | |
| ErP darajasi (35 daraja) | A+++ | ||||||||
| ErP darajasi (55 daraja) | A++ | ||||||||
| Ishlayotgan suv harorati ( daraja ) DHW | 20-55 daraja | ||||||||
| Ishlayotgan suvning harorati (daraja) isitish | 20 ~ 50 daraja | ||||||||
| Ishlaydigan suv harorati (daraja) sovutish | 7-35 daraja | ||||||||
| Izoh: Isitishning ish holati: Kirish suvining harorati 30 daraja, Chiqish suvining harorati 35 daraja, Quruq lampochkaning harorati 7 daraja, Ho'l lampochkaning harorati 6 daraja. Sovutish ish holati: Kirish suvining harorati 12 daraja, Chiqish suvining harorati 7 daraja, Quruq lampochkaning harorati 35 daraja, Ho'l lampochkaning harorati 24 daraja. DHW ish holati: Kirish suvining harorati 15 daraja, Chiqish suvining harorati 55 daraja, Quruq lampochkaning harorati 7 daraja, Ho'l lampochkaning harorati 6 daraja. |
|||||||||
